Shell & Tube Heat Exchanger Design Software for Process Engineers

Explore Features Get Started

TubeLayout Heat Exchanger Tubesheet Layout Visualization

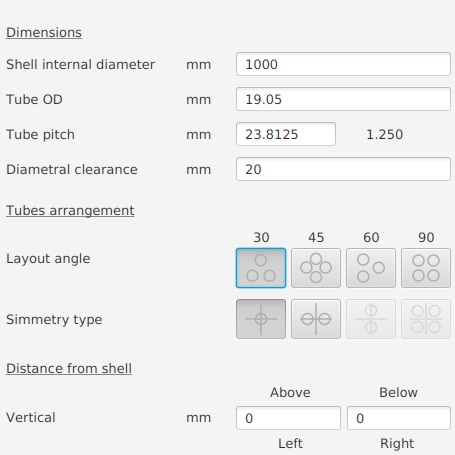

Tube Sheet Specification

Specify tubes arrangement quickly and flexibly for any heat exchanger design

Tube sheet specification interface - Configure tube diameter, pitch, and arrangement

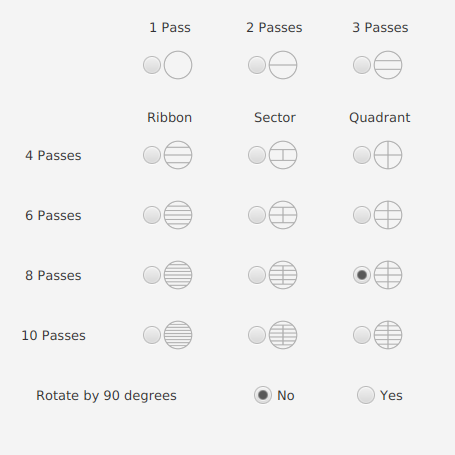

Multipass Arrangements

Ribbon, sector and quadrant tube layout patterns for thermal efficiency

Multipass tube layout patterns - Ribbon, sector, and quadrant configurations

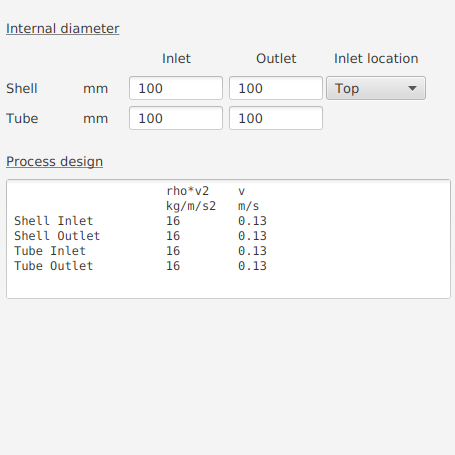

Advanced Features

Baffles, nozzles, geometrical data and CAD export capabilities

Nozzles and baffles specification - Complete heat exchanger geometry

Tubesheet Layout Examples

1 pass tubes layout example - Single pass shell and tube configuration

Single Pass Configuration

4 passes tubes layout example - Multi-pass sector pattern for thermal design

4-Pass Sector Pattern

1 pass NTIW layout example - Non-Typical Internal Wall configuration

NTIW Configuration

Ready to streamline your heat exchanger design process?

Join engineers who save time with TubeLayout. Export to DXF, SVG, PNG instantly.

Subscribe Now - €19/year

View all features | Compare plans
